Man power required.................................... ..................................... one operator with one assistant

- Total power required: .................................................................. ........................................15.5 K.W

- Set up t ime:............................................................... . ..................... ...................................... 15 MIN

- Working hours per day:.................................................................. ....................................... 8 TO 16

- Line d irection............................... ....................................... left to right while facing operator panel

- Overall machine length required:...................................................... ...................................... 13.6M

- Overall packing s hippment:......................................... ...................................... one 40FT container

- Approximate machine height:............................................................. ....................................... 1.6M

- Machine frame................................................................... ...................................... H-BEAM fram

Type of material to be p rocessed:................. ....................................... Galvanized/Pre-painted steel

- Thickness of coil: ............................................. .............................................................0.3-0.8 mm

- Max. weight of coil:........................................................................ .......................................5 000kg

- Variable line speed:...................................... ...................... 20 mtr./min.(not includes press and cut)

- Material loading system....................................................... .................................................Manual

- Accuracy level: ............................... ................................... PROFILE DIMENTION: +/- 0 .5 M.M.

.......................................... ........................ ANGULAR DIMENTION: +/- 1 DEGREE

............................................ ........................ .BEND/TWIST/WARP: 0 .5 MM/MTR.

......................................... ....................... END FLAIR(AT CUT END):+/- 0 .5 M.M.

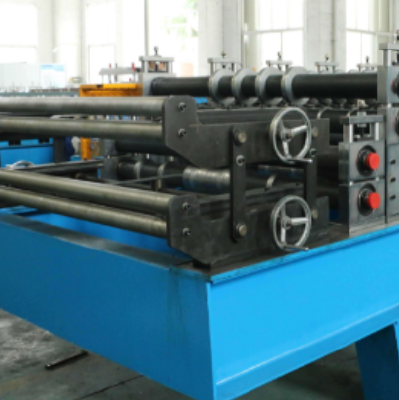

- No. of Work Station............................. ...............................................................16 s ets for profile 1

............................... ...........................18 sets for profile 2

- Thickness of Coil.............................................................. ................................................0.3-0.8 mm

- Max. Roll shafts Dia................................................................ ................................................ 76mm

- Max. Line Speed................................ ...............................................2 0mtr./min(Not include shear)

- Required Motor Capacity....................................................... ..............................................7.5 K.W

- Roller material: ....................................................... ............................. GCr1 5, double machining

- Coil width........................................ .................................................. 1 22 0/ 914 mm for above Panels

- PLC controller :............................................................... ................................................... Siemens

- Transducer:..................................................................... ................................................... Yaskawa - Encoder :..................................................................... .......................................................... KOYO

- Other electronic components ............................... .............................................................Schneider

- Transmission:......................................... .................................... . ..................... chain driving system

- Cages................................................... ........................................ . ............... use the strong steel nets

- Levelling screws on base ....................... . .. ..................................................... with t hick metal plate
